What is Stainless Steel Round Bar?
Stainless Steel Round Bar is one type of product which belongs to the stainless steel type material. Classification of stainless steel can further be divided into types of grades as used across different industries. Strength and corrosion resistance are the benefits customers get from the stainless steel bars. The company, Skytech Rolling, is the fastest-growing stainless steel round bar manufacturer in India. All stainless steels have chromium in them and the composition can change as can the chromium level. The corrosion resistance of SS increases with an increase in the percentage of chromium content in the steel.
The bar is also known as a stainless steel rod. The applications of bars and rods depend on the specific requirements of the application and the grade of the material. There are different specifications that dictate production and application types. The ASTM A276 Stainless Steel Bar is a specification for hot-rolled and cold-drawn bars, excluding forged bars. Stainless steel bars can be produced in different shapes such as round, square, hexagonal, and other extruded shapes.
The hot rolled stainless steel round bar has a larger amount of absolute roughness than the drawn bars. This is not a problem when the bars are employed for reinforcement where strength and/or corrosion characteristics are required. However, when the bars are utilized for aesthetic use or outdoor application, the Cold Drawn Stainless Steel Round Bar is typically chosen because of the surface finish, where the smoothness equates to a better absolute roughness. The bars can also differ in dimensions, with a common diameter of 5mm to 450mm. For more information on the SS Round Bar Size Chart and our rates, kindly contact us.
Skytech Rolling is regarded as one of the most vital stainless steel round bar manufacturers and suppliers worldwide, and we have always been committed to offering quality round bars that fit various industries. Our vast range includes SS 304 bars fabricated from stainless steel and in precision to offer both high performance, durability and reliability. Constant focus on quality, therefore enables us to supply to our customers the best stainless steel round bars on demand.
If you are looking for a trusted SS round bar manufacturer in India, we are here to help. As a leading stainless steel round bar supplier. We have a large range of SS round bar sizes to suit your needs. As a trustworthy SS round bar manufacturer, we also make custom size products as per your specific requirements. We always provide high quality material at the best price. Contact us today to get the right round bars for your project.
Stainless Steel Round Bars
SS Round Bars
SS Round Bar
Stainless Steel Bar Specifications
| Stainless Steel Bar Length | 2 to 6 meters or 8 to 20 feet |
|---|---|
| SS Rod Chamfering | Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine |
| Ultrasonic Test of ASTM A276 Threaded Rod | As per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO it is 100% tested thru Digital
Ultrasonic Flaw Detector, 10423:2003-PSL 3, MIL STD 2154, SEP 1920:1984 |
| SS Round Bar Size Tolerances | h11 |
| Tolerance of Cold Rolled SS Round Bar Length | Stock in special cut to length bar in tolerance – 0/+10mm (-0 +0.5 inch) |
| Surface Finish of Cold Rolled SS Bar | Cold drawn or Belt polished condition |
| Bar Heat Treatment | Annealed and Solution Annealed |
Prices of Stainless Steel Half Round Bars
| Stainless Steel Round Bar Price List | Price in India | Price in UAE |
|---|---|---|
| SS Round Bar Price | Rs.578 | $27.98 |
| Stainless Rod Prices | Rs.1,595 | $77.21 |
| SS Bar Price Per Kg | Rs.414 | $20.04 |
| Hot Rolled SS Round Bar Price | Rs.540 | $26.14 |
SS Round Bar Grades
| 300 Series SS Grades | SS 303, 304, 304L, 309, 310, 316, 316L, 316H, 317, 317L, 321, 347 |
| 400 Series SS Grades | 410, 410PSQ, 410QDT, 410HT, 416, 416HT, 416PSQ, 420 |
Standard Stainless Steel Rod Sizes
| Type | SIZES in milimeter | SIZES in inches | Tolerance |
|---|---|---|---|
| Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
| Cold Drawn and Polish | 3.00 to 75.00 | 1/8 to3.00 | h8 to h11 |
| Cold Drawn and Ground | 10.00 to 75.00 | 5/6 to 2.50 | h8 to h11 |
| Peeled nd Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9 to h11 |
SS Round Bars Standard lengths of 2000 mm up to 6000 mm.
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
ASTM A479 SS Round Bar Chemical Composition
Mechanical Properties of Forged Stainless Steel Round Bar
| Grade | Elongation | Density | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point |
| SS 202 | 40 % | 8.0 g/cm3 | 515 MPa | 275 MPa | 1454 °C (2650 °F) |
| SS 303 | 50 % | 55% | Psi – 85,000 | Psi – 45,000 | Rb 180 |
| SS 304 | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 304L | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 316 | 35 % | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1454 °C (2650 °F) |
| SS 316L | 40 % | 8.0 g/cm3 | 485 Min | 170 Min. | 1400 °C (2550 °F) |
SS Bars Equivalent
| UNS NO | Outokumpu | AISI | Werkstoff NO | ASTM NO |
|---|---|---|---|---|
| S31254 | 254SMO | 904L | 1.4547 | A276 |
| N08904 | 6Mo (Moly) | 1.4539 | A479 | |
| EN10272 | B677 | |||
| F44 |
Round Steel Bars Weight
| Diameter | Weight Chart | Dia | Weight Chart |
|---|---|---|---|
| (mm) | per metre (kg) | (in) | per metre (kg) |
| 3mm | 0.06 | 1/8" | 0.06 |
| 4mm | 0.10 | 3/16" | 0.14 |
| 5mm | 0.16 | 1/4" | 0.25 |
| 6mm | 0.22 | 5/16" | 0.39 |
| 7mm | 0.30 | 3/8" | 0.56 |
| 8mm | 0.40 | 7/16" | 0.77 |
| 10mm | 0.62 | 1/2" | 1.00 |
| 12mm | 0.89 | 9/16" | 1.22 |
| 14mm | 1.22 | 5/8" | 1.56 |
| 15mm | 1.40 | 11/16" | 1.89 |
| 16mm | 1.59 | 3/4" | 2.25 |
| 18mm | 2.01 | 7/8" | 3.07 |
| 20mm | 2.48 | 1" | 4.03 |
| 22mm | 3.00 | ||
| 24mm | 3.57 | ||
| 25mm | 3.88 |
Hot Rolled Stainless Steel Round Bar Dimensions
| Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Most Frequently Used Types Of SS Round Bar
Stainless Steel Hex Bar
6mm Stainless Steel Rod
SS Flat Bar
Stainless Steel Square Bar
SS Rectangular Bar

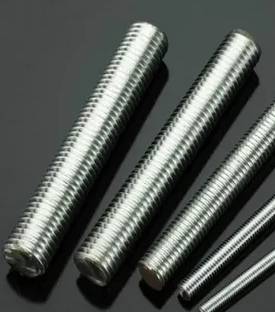

Stainless Steel Threaded Bar

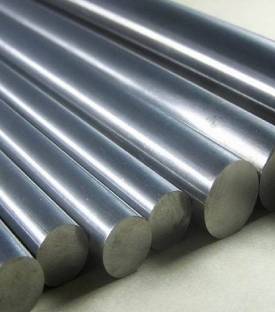

SS Bright Bar

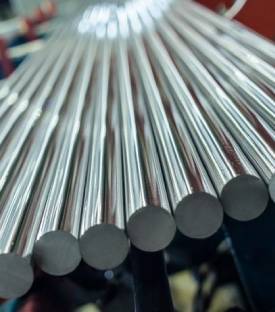

Stainless Steel Polished Bar

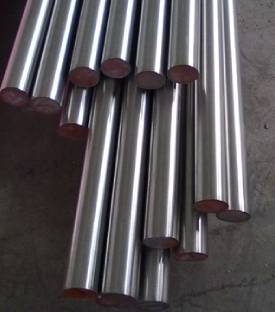

SS Cold Drawn Bar
Half Round Stainless Steel Bar

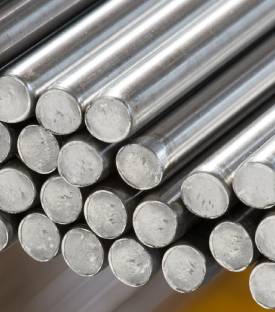

Precision Ground Stainless Steel Round Bar
Metric Stainless Steel Round Bar
